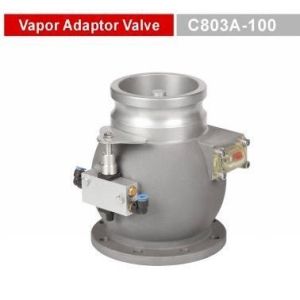

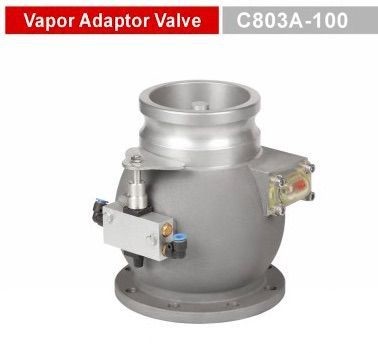

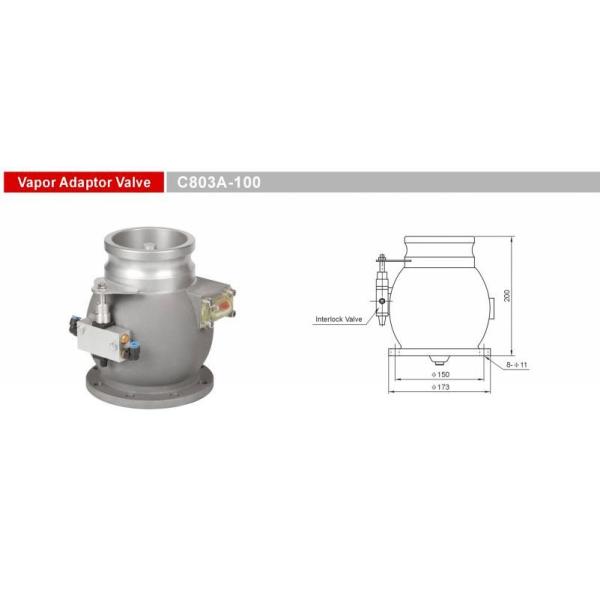

4" API Vapor Adaptor Valve C803A for Diesel Tank Truck Trailers

Model NO. : GET/C803A-100

Connection Form : Flange

Structure : Threaded

Pressure : 0.3MPa

Sealing Form : Bellows Globe Valve

Flow Direction : Unidirection

Standard : API

Application : Industrial Usage

Body Material : Aluminum Alloy

Port Size : 4"

Temperature of Media : Low Temperature, Normal Temperature

Customized Support : OEM

Open Method : Mechanical /Pneumatic Can Choose

Installment Mode : Threaded

Power : Pneumatic

Certificate : API

Usage : Fuel ,Oil, Jet

Warranty : 1 Year

Transport Package : Packed in Case

Trademark : GET ENERGY GET VEHICLES

Origin : China

HS Code : 8716900000

Supply Ability : 500 Set Per Month

Contact Now

4" API Vapor Adaptor Valve C803A for Diesel Tank Truck Trailers

API Adaptor Valve

It is installed on one side of bottom tanker, with the design of quick connecting structure,Interface dimension conform
to API RP1004.It is important component of bottom loading system to get quick detachment without leakage, ensuring much safer and reliable when loading & discharge.It suitable for diesel ,petrol, kerosene and other light fuel.

Norminal Diameter			4"
Working Pressure			0.3MPa
Max Flow Rate			2500L/Min
Material			Aluminum Alloy
Open Method			Pneumatic
Installment mode			Threaded type
Temperature Trange			-20~+70ºC

Function& Feature

1.Split structure,It can change valve sealing without remove the valve body.

2.Valve body is oxidized by hard anodes and is not easy abrasion when connecting with joint.

3.The interface dimensions is conform to standard APIRP1004,it can connect with standard API joint.

4.Pneumatic interlocking valve can be installed to realize interlock control by docking

API Adaptor Valve

API Adaptor Valve is installed on one side of the bottom of the tanker, with the design of quick connection structure. Interface dimension is designed according with the API RP1004 standards. This is an important component of the bottom loading system to get quick detachment without leakage, it is much more safe and reliable when doing the work of loading and uploading. This product is suitable for water, diesel gasoline and kerosene and other light fuel, but it cannot be used in corrosive acid or alkali medium.

Function & Feature

1. Hardening Treatment The whole valve body is passed a special hardening process to improve its service life

2. Second Gear Open When do the handle open, there are two stalls to set the flow rate according to the customer's demand.

3. Standardized size Interface dimension is designed according to the API RP1004 Standard, docking with the standard API connector.

4. Light Weight The main Body is made of aluminum alloy; it is more light and sturdy

5. Superior Process Performance Reasonable design for the less pressure differences ensures the large input and output flow rate

6. With the sight glass Convenient to observe the inner working situation

7. Foundation for interlock valve When install the interlock valve, the API Adaptor can be controlled by Air.

8. Easy-Maintenance When in the situation of no need to replace the valve, just to replace the sealing gasket.


MANHOLE COVE ( STEEL/ ALUMINUM/ STAINLESS STEEL)	EMERGENCY SHUT VALVES (ALUMINUM / STAINLESS STEEL / PTFE LAYER )

API ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER	VAPOR ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER
